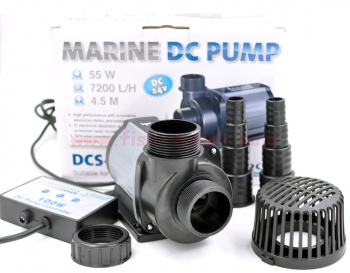

Jebao DCS Silent Swirl DC Pump

Price$0.00
Points Price0.0
Reward Points0.0
Select Size:
Qty
2012 Nov Fish Street Distributor Jebao WP40
2013 May Fish Street First Release Jebao Wp-25
2013 Oct Fish Street First Release Jebao Wp-60 Jebao Wp-10
2014 Feb Fish Street First Release for Jebao Twins controller
2014 May Interzoo Fish Street help jebao factory to First Release RW-4 RW-8 RW-15 Rw-20
2014 Oct First Release Jebao DP4
2015 Jan First Release Jebao DP2
Fish Street involves on the factory to help and develop much Jebao item. Follow us as the big replacement support center.  For replacement kits you can order with us which factory not supply

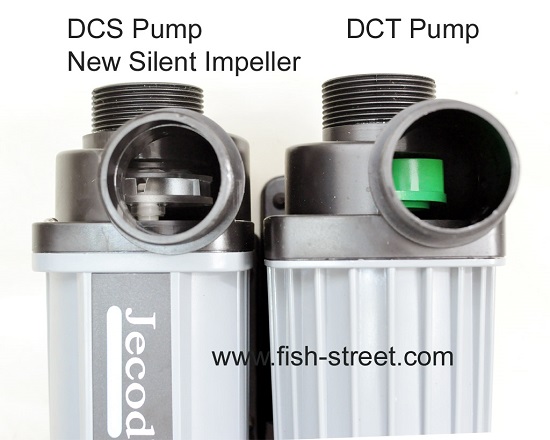

What Difference for the Jebao DCS Pump and DCT Pump ?

DCT Pump is produce on 2014. DCS Pump is produce on 2015 Aug which based on the DCT weakness to develop.

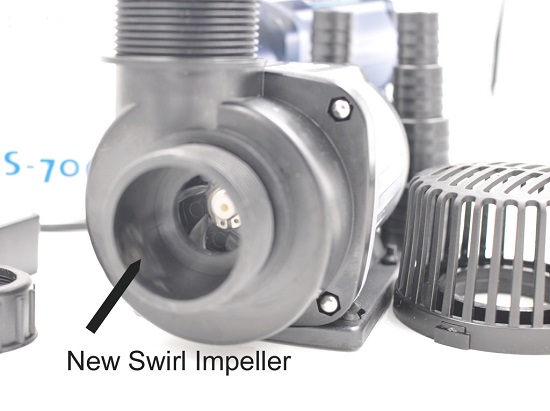

Jebao DCS Pump using new swirl impeller, make it more silent and reduce vibration .  The Hmax also increase around 25% than the DCT Pump


DCS7000 Controller from 5000Litres to 7000Litres

DCS9000 Controller from 7000 Litres to 9000Litres

DCS12000 Controller from 10000Litres to 12000Litres


Want DCS have a ATO Function and more Silent ? More Accuracy Flow? Cleaning Function of DCS?  BackupBattery Function? Overclock for your DCS Pump?

You Need our our latest Aqua Link controller

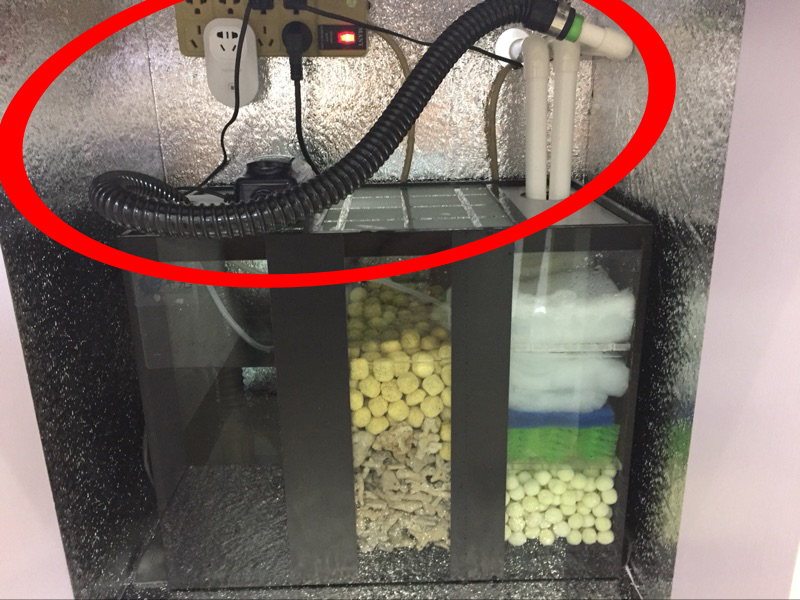

Make backup battery pump for your tank now here


Feature

  • High performance motor with innovation electronics, and energy savig up to 50% than before.
  • Memory Function for Power Supply Off to recall memory
  • 10 Speed Mode controller for S Series
  • Silent Function
  • 25% Output of the DCT Pump for Max Height
  • IC Electronic Detection, automatic power-off protection upon no water
  • Motor Protection if rotor is blocked
  • Super Quiet Operation

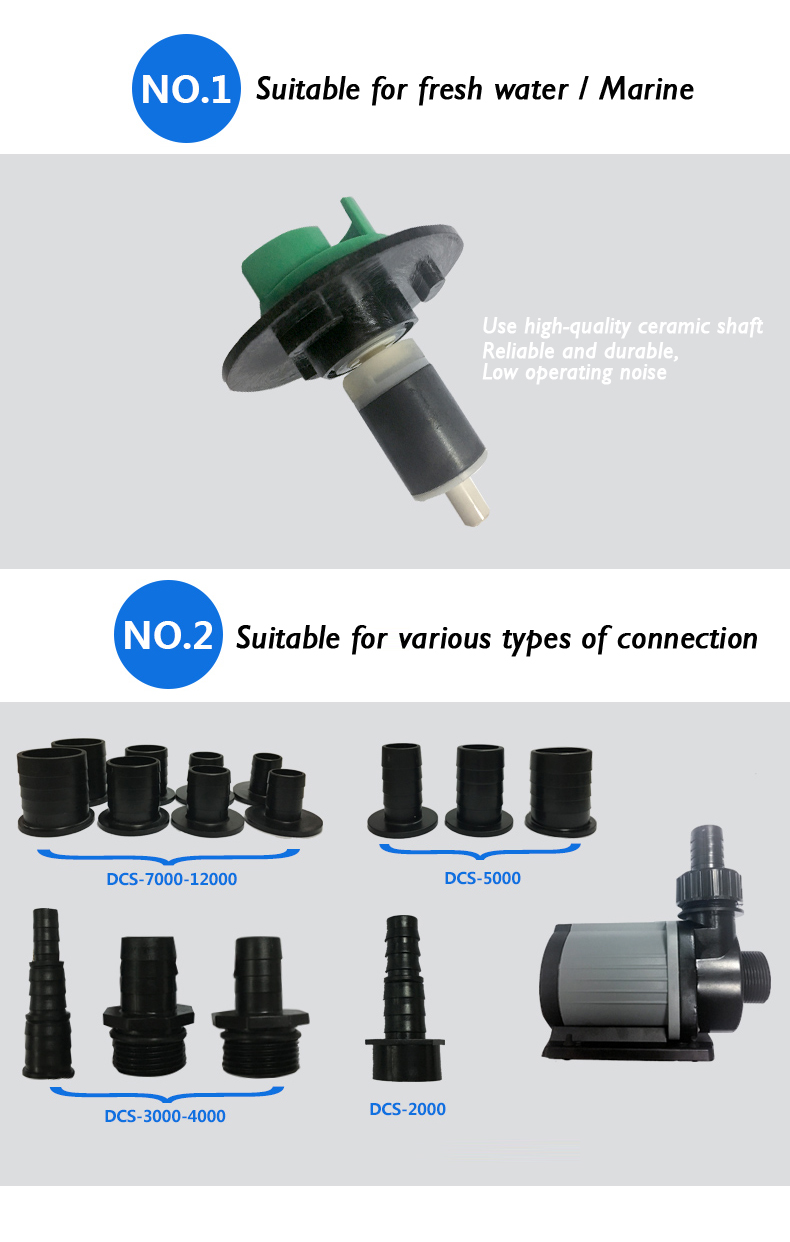

  • Can operate in Marine and Fresh Water
  • No Copper components , safety on your tank!
  • With Wear-resistant Ceramic Shaft, longer operation life
  • 10 Mins Feed Model(Or Pause to resume to normal)
  • Internal Use Only! DC Pump do not suppose for External Use












Attention : Below is the Wifi Function (Extra Controller for DCS/DCT Pump)

We have a Aqualink T1 Package with DCS/DCT Pump, it can combine together to make a discount!









Different Between Jebao Controller with Mobile Aqualink Controller



Aqualink Controller
Jebao DC Controller
ModeNormal / Nature / Reef Plus / Gyre / Mix / Wave Box /Reserve / Normal
Night Mode

Can Set  scheduler time to set night mode(1 to 100%). NO Electrical or Lighting affection

Make sure if too small flow below 50%, for your Sump Check valve will Function ~



Customer can set their own night outflow.




         Genius Night mode will not sudden drop the flow when reach on night time, it will auto 60second to count down to slow the flow or wake up 60 second to avoid scray of fish

No this Function

Feed Mode2 Feed Mode Function: Physical Feed mode button + 1mins to 999mins feed time. Schedule time Feed Time Function10 Mins Feed Time
Flow Rate1 to 120% Output (Digital Setting from 1 to 120%, more Accuacy) (Make sure for your Sump check valve will affection on the system operation 10 Speed Mode(Test 65% to 100%) Physical Button, cannot adjustable lower or accuacy flow rate
Stable & SilentStable IC chips to control, Protection of the pump without sudden damage, make the circuit more accuracy and stable, for skimmer operation will more accuracy with same water level. Silent Function of controller will drop more 10% sound compare with orginial controllerNo this function
OverClockMax can overclock to 120% (Depends on the machine physical element)No
WiFiYes . Mobile for Andriod / IOS, continuous upgrade for futureNo
TimerTimer can set as On/ Off(0%), to make the pump as timer function. Like continuous mode / healthy mode (see detail of the website photo) . Same like Apex controller functionNo
CustomUser can set on the pump operation on which mode during schedule timeNo
Control PumpMax can control 3 Pump (A B C), idea to create with schedule time to generation mix different flowMax 2 Pump only on the same time
Cleaing FunctionReserve Impeller to reduce Sand / Stone on your return PumpYes









Want Overclock for your Pump?


For the default controller operation 100%, we can overclock to 120%. Under our Controller the default DCT/DCS3000/ 4000/6000/5000/7000/8000/12000/15000 more 20% Output!  (Depends on the pump factory design, Fish Street will not response for factory change any physical materials on the pump, we based on the existing pump to increase the speed only)



Want WiFi for you DC Pump / Wave Maker Pump ?

Want Schedule with your Pump in Night?


(Example my tank is big, need 2 unit of the Pump, but I want Pump A 30% on Night in 1:00AM to 5:00AM, and 20% on B Pump on 5:01AM to 7:00AM). It's make my coral and fish sleep well

Want to Schedule on your feed time?
The default RW controller just 10mins, for some frozen food  require more time on feeding
For Zeovit  / some of the coral element need more than 10mins on cell division to reduce skimming.  You can now using Feed time to set


For skimmer default 10 mins is not enough when you wash or change water, it will make overflow when it skimmer work again after the feed mode

Feed Time up to 1Mins to 999Mins


Want Mini for your Pump Flow?

For our controller is digital type, it can make for your pump mini 1% change on it ~ Example for control the DC2000 Pump from 100Litres to 2000Litres.

For default Controller which cannot mini for small digital change(Default is 1200Litres to 2000Litres for default controller) We can make the system from 100Litres to 2000Litres. More accuracy like connection with chiller pump using


Want Stable for your Pump?

For the Default controller the IC will affection of the water flow on the venture part. It;s frequency not keep consistency on the Pump Water Level(Skimmer / Flow Rate )

Using our New Technology Controller can make for your Pump keep stable consistance

Want Silent More for your Pump?
Our controller which using the latest technology design, it can reduce a lot of vibration of the Pump. Silent More than default controller * (Sound will depends on the human behaviours, to be compare with existing controller, it is more silent)

Genius Night Mode


Our Night Mode which based on your setting on the schedue time, it will not happen any sensor not working.  When Night mode is On, it will not sudden drop the flow rate from Half. Its will based on your setting , 1 mins to drop down to preset flow rate. Its more nature and humanize


Battery Backup

The Aqualink WiFi controller which can work together with Battery Mode for CoralBox Battery for Jebao. If for your electricity is down, it will auto work with our Battery together(Need to buy and operation half output for emergency mode)


Want Different Mode of WaveMaker / DC Pump?

Normal  / Gyre / Mix  / Reef / Nature / Clockwise Mode

OverClock Mode on your skimmer


Easy to Handle the Pump connection? Order our PVC drain Pipe connection tube here
